Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm

Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm
Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm
Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm
Basic Information
Place of Origin: China
Brand Name: New-Era
Certification: ISO9001 ISO14001 TS16949
Model Number: ISO683-17
Minimum Order Quantity: 5 tons
Price: Negotiation
Packaging Details: packing in standard seaworthy packages.
Delivery Time: 35days
Supply Ability: 2000tons per month
Get Best Price Contact Now
Application: Bearing Keyword: 100Cr6
Materials: 100Cr6,GCr15,SAE52100,EN31 Surface: Customized
Type: Cold Drawn And Cold Rolled Size: OD:22-100mm;WT: 2-15mm;Length:1-12000mm
Shape: Round Product Name: ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6
Highlight:

astm bearing steel tube

,

od 22mm bearing steel tube

,

100cr6 cold rolled seamless steel pipe

ASTM Bearing Steel Pipe

SAE52100/EN31/GCr15/100Cr6 For industry Bearings application


GCr15 refers to a high carbon and chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has high hardness, uniform structure, good wear resistance and high contact fatigue performance.

Features

  1. 1 A kind of high carbon and chromium bearing steel which most widely used with a good permance and less alloy content.
  2. 2. High hardenability and good comprehensive performance.
  3. 3. Good machinability after spheroidizing annealing
  4. 4. High hardness, uniform organization, good wear resistance, high contact fatigue performance after quenching and tempering.
  5. 5. Good hot working performance

Similar Standards

Chinese American German Japanese
GB AISI DIN JIS
GCr15 SAE52100 100Cr6/EN31 SUJ2

Chemical Composition

Grades C Si Mn P S Cr Mo Cu Ni
GCr15/52100 0.95-1.05 0.15-0.35 0.2-0.4 ≤0.027 ≤0.02 1.3-1.65 ≤0.1 ≤0.25 ≤0.3
100Cr6 0.95-1.05 0.15-0.35 0.25-0.45 ≤0.025 ≤0.025 1.4-1.65 ≤0.08 ≤0.25 ≤0.3

Heat Treatment

Quenching Tempering
Heating Temperature/ºC Cooling Hardness/HRC Heating Temperature/ºC Cooling Hardness/HRC
830-850 Oil 62-65 150-190 Air 58-62

General Applications

  1. 1 For making all kinds of bearing ring and rolling element, such as steel ball roller and ferrule of inernal combustion engine, electric motorcycle, automonilrd tractors, machine tools, rolling mill, boring machine, mining machinery, general machinery, high load and high speed roating mechanical transmission bearing.
  2. 2. Sometimes also used to make tools, such as pumching die and measuring tools

Products Description:

Cold Drawn/Cold rolled Seamless Tube Bearing Steel Pipe GCr15 100Cr6



Steel Grade/Steel Material:

Steel Grade mass fraction %
C Si Mn P S Cr Mo
GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.020 1.30-1.65 ≤0.10
100Cr6 0.93-1.05 0.15-0.35 0.25-0.45 ≤0.025 ≤0.015 1.35-1.60 ≤0.10
100CrMnSi6-4 0.93-1.05 0.45-0.75 1.00-1.20 ≤0.025 ≤0.015 1.40-1.65 ≤0.10
100CrMnSi6-6 0.93-1.05 0.45-0.75 1.40-1.70 ≤0.025 ≤0.015 1.40-1.65 ≤0.10
100CrMo7 0.93-1.05 0.15-0.45 0.25-0.45 ≤0.025 ≤0.015 1.65-1.95 0.15-0.30





Delivery Condition: +C, +LC, +SR, +A, +N



Size Range:

OD: 20-100mm
WT: 2-15mm
Length: 2-12m

Our regular size: 29.4x5.6mm, 36.9x7.73mm, 62.9x7.3mm etc

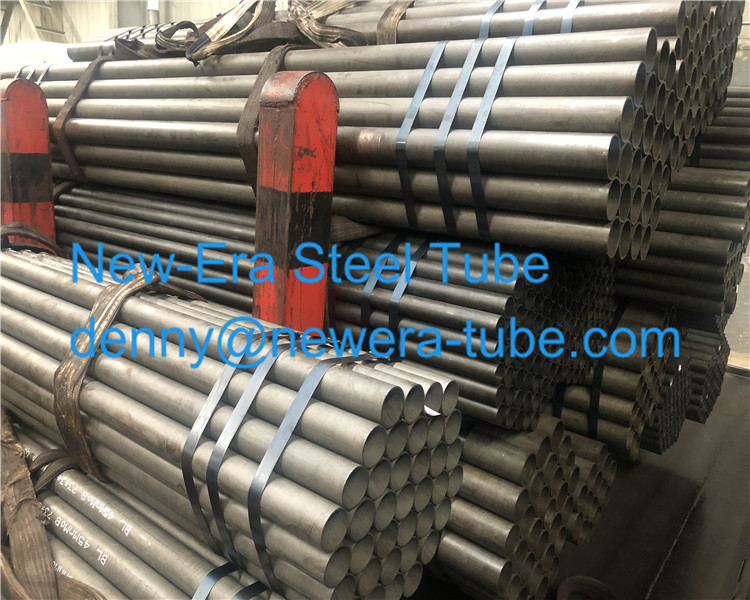

Production Steel Tube 100Cr6:



Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm 0Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm 1

Astm 100cr6 Round Bearing Steel Tube / Pipe Cold Rolled Od 22mm 2



Tags: 100Cr6 , Bearing steel pipe, Bearing pipe, Round Steel Pipe, 51200, GCr15
