| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO14001:2008,TS16949 |
| Model Number: | GB/T3077 , 38CrMoAl , ISO41CrAlMo74 |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Material: | JISG3445 STKM11A 12A 12B 12C 13A 13B 13C 15A | Delivery Condition: | HR, CW, SR, A, N |
|---|---|---|---|
| OD Size: | 3-420mm | Usage: | For Machine Structural Purposes |

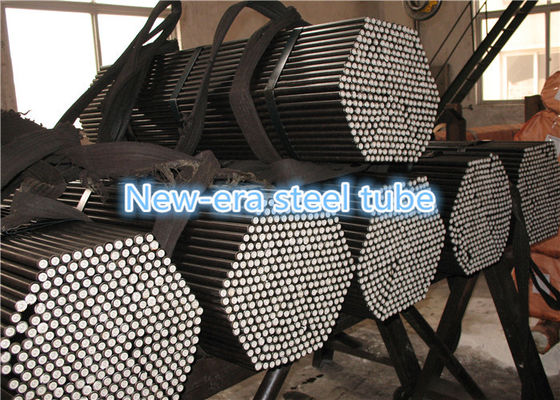

| Surface: | Oiled | Packaging Details: | Packing In Wooden Boxes Or In Hexagonal Bundles |
| Shape: | Round Shape | WT Size: | 0.5-50mm |
| Highlight: | seamless alloy steel tube,alloy steel seamless tubes,alloy round tube |
||

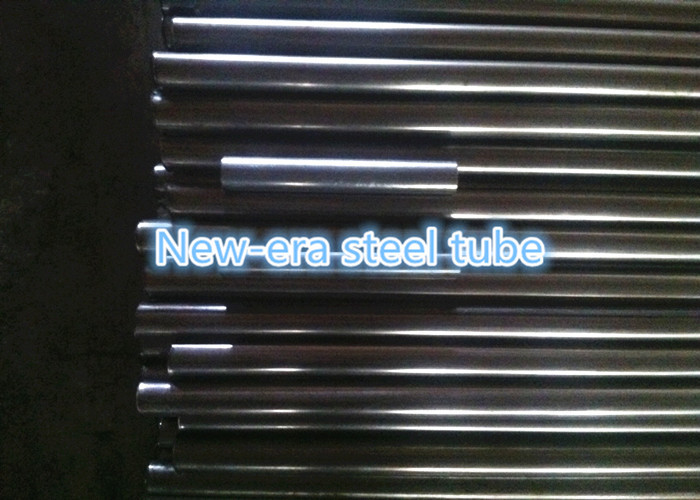

JISG3445 STKM11A 12A 12B 12C 13A 13B 13C 15A Drawn Over Mandrel Steel Tube:
JIS G3445 STKM 15A Drawn Over Mandrel Steel Tube Seamless And Electric Resistance,
which is produced by mandrel and die on the ERW mother tube, with cold drawing and cold rolling processing to achieve final target dimension, with good OD and ID smoothness
Product Name: Carbon steel tubes for machine structural purposes
Japanese Product Name :つぎめがないこうかん
Drawn Over Mandrel Steel Tube Material : STKM 15A or according to customers Specifications
DOM Tubing Application :
Machine Structural Purposes
Machine Auto competent
Furniture
Bicycle
Mechanical parts
Mechanical Elements
Machine elements
1.Drawn Over Mandrel Steel Tube Grade
a. STKM 11A
b. STKM 12 (ABC)
c. STKM 13(ABC)
d. STKM 14(ABC)
e. STKM 15(AC) etc
f. Standard JIS G3445
2. OD:4-60mm, Wall thickness:0.5-7mm
3.Characteristic:The tubes are high precision in tolerance
4.Kindly advise heat treatment requirement if any.
5.STKM 15A Chemical composition % max:
C:0.25-0.35
S:0.35
Mn:0.30-1.00
P:0.04
S:0.04
DOM Steel Tube Delivery Condition:
HR CW SR A N HF
HR:hot rolled
CW:cold worked
SR:stress relieved
A:annealed
N:normalized
HF: hot formed.
Drawn Over Mandrel Steel Tube Mechanical properties:
Tensile strength min470Mpa
Yield Strength min275 Mpa
Elongation min 22%
| Tolerances on OD | |
| Division | Tolerance on OD |
| No.1 |
under 50mm ±0.5mm
50mm or over ±1%
|
| No.2 |
under 50mm ±0.25mm
50mm or over ±0.5%
|
| No.3 |
under 25mm ±0.12mm
25mm or over to and excel.40mm ±0.15mm
40mm or over to and excel.50mm ±0.18mm
50mm or over to and excel.60mm ±0.20mm
60mm or over to and excel.70mm ±0.23mm
70mm or over to and excel.80mm ±0.25mm
80mm or over to and excel.90mm ±0.30mm
90mm or over to and excel.100mm ±0.40mm
100mm or over ±0.50%
|
Note:1. For hot finished seamless steel tube, the outside diameter tolerance No.1 shall be applied.
2.The tolerance on outside diameter of quenched and tempered tubes shall be as agreed upon by the purchaser and manufacturer.
| Tolerances on WT | |
| Division | Tolerance on WT |
| No.1 |
under 4mm +0.6mm -0.5mm
4mm or over +15%-12.5%
|
| No.2 |
under 3mm ±0.3mm
3mm or over ±10%
|
| No.3 |
under 2mm ±0.15mm
2mm or over ±8%
|
