NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NEW-ERA |
| Certification: | ISO9001/TS16949 |
| Model Number: | M3-M120 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiation |
| Packaging Details: | bundles packing,wooden box packing |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000tons per month |
| Standard: | DIN975,DIN976,ASTM A193 | Material: | Stainless Steel,alloy Steel,carbon Steel,Brass,etc. |
|---|---|---|---|
| Size: | Can Be Customized,M3-M100,Cusomized,M3-M48 | Finish: | Plain,black,Zinc Plated,dacromet |
| Name: | Stainless Steel DIN 975 Threaded Rods(studdings),stainless Steel Threaded Rod,Bolts,M42 M45 Stainless Steel Fasteners Full Threaded Rod And Bolt | Surface Treatment: | Nickel,Dacromet,Nickel-plated,Chrome |
| Class: | ASTM A 193 Gr.B7, Gr.B7M, B16,Gr.B8, B8M | ||
| Highlight: | threaded metal rod,high tensile threaded rod,DIN 976 Threaded Steel Rod |
||

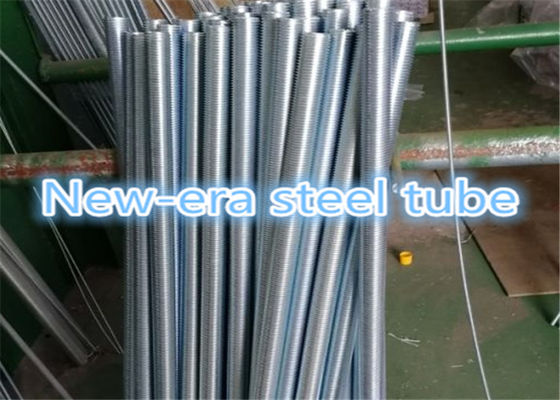

ASTM A193 B8 B8m , Zinc Plated Galvanized B7 , M3-M120 DIN975 DIN976 Threaded steel Rods
ASTM A193 B8 B8m/Zinc Plated Galvanized B7/M3-M120 DIN975 DIN976 Steel China LaiWu XinCheng
ASTM A193: B7, B7M, B16, B8 class 1, B8 class 2, B8M class 1, B8M class 2, B8T etc.
ASTM A320: L7, L7M, L43, B8 class 1, B8 class 2, B8M class 1, B8M class 2, B8T etc.
Sizes:1/4'' to 4''
1. Know A193 B7 & A193 B7M
1)ASTM A193 is alloy steel bolting material for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
Material according to ASTM A193 B7 is often available in national coarse (UNC) thread pitches, if being used in traditional applications, threads are specified 8 threads per inch (tpi) for diameters above one inch.
2)ASTM A193 Grade B7M bolts and studs are identical in chemistry to Grade B7 (quenched and tempered medium carbon alloy steel), but have lower strength requirements and require 100% hardness testing of all fasteners manufactured in the lot. Grade B7M bolts resist chloride, sulfide, and hydrogen stress corrosion cracking (SCC) and are frequently used in sour gas service.
2. A193 B7 & A193 B7M Raw material chemical composition
| Element | B7 / B7M (AISI 4140) |
| Carbon | 0.38 - 0.48% |
| Manganese | 0.75 - 1.00% |
| Phosphorus, max | 0.04% |
| Sulfur, max | 0.04% |
| Silicon | 0.15 - 0.35% |
| Chromium | 0.80 - 1.10% |
| Nickel | |
| Molybdenum | 0.15 - 0.25% |
3.. A193 B7 & A193 B7M Property
| Grade | Sizes | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min | HBW | HRC |
| A193 B7 | Up to 2-1/2 | 125 | 105 | 16 | 50 | 321 max | 35 max |
| 2-5/8 - 4 | 115 | 95 | 16 | 50 | |||
| 4-1/8 - 6 | 100 | 75 | 18 | 50 |
| B7M | Up to 4 | 100 | 80 | 18 | 50 | 235 max | - |
| Over 4 - 7 | 100 | 75 | 18 | 50 |
4. Surface protection: Plain, Hot dip galvanized, Galvanization, Dacroment, Xylan .

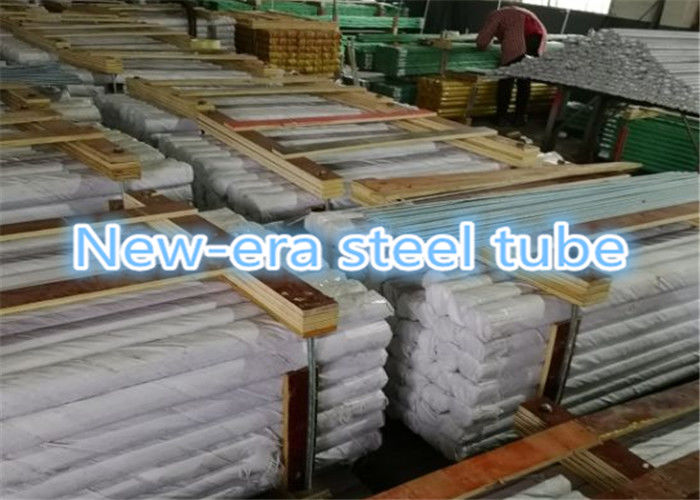

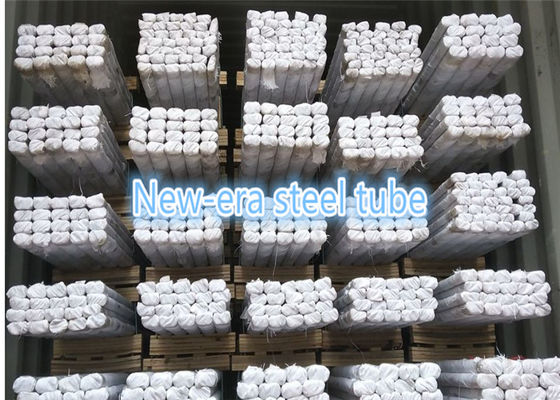

5. Packing: Standard packing or According to custome
6. Payment terms: T/T or L/ C
(1)30% paid by T/T and rest 70% by T/T upon the copy of B/B.
(2)100% irrevocable L/C at sight
7. MOQ:5tons
8. Delivery time:7-30 days upon to the order details
9. Trade term: FOB CFR CIF
10. Port of loading: shanghai, China
11. Mark: including steel material, heat No., pieces, weight, date and so on.
